Description

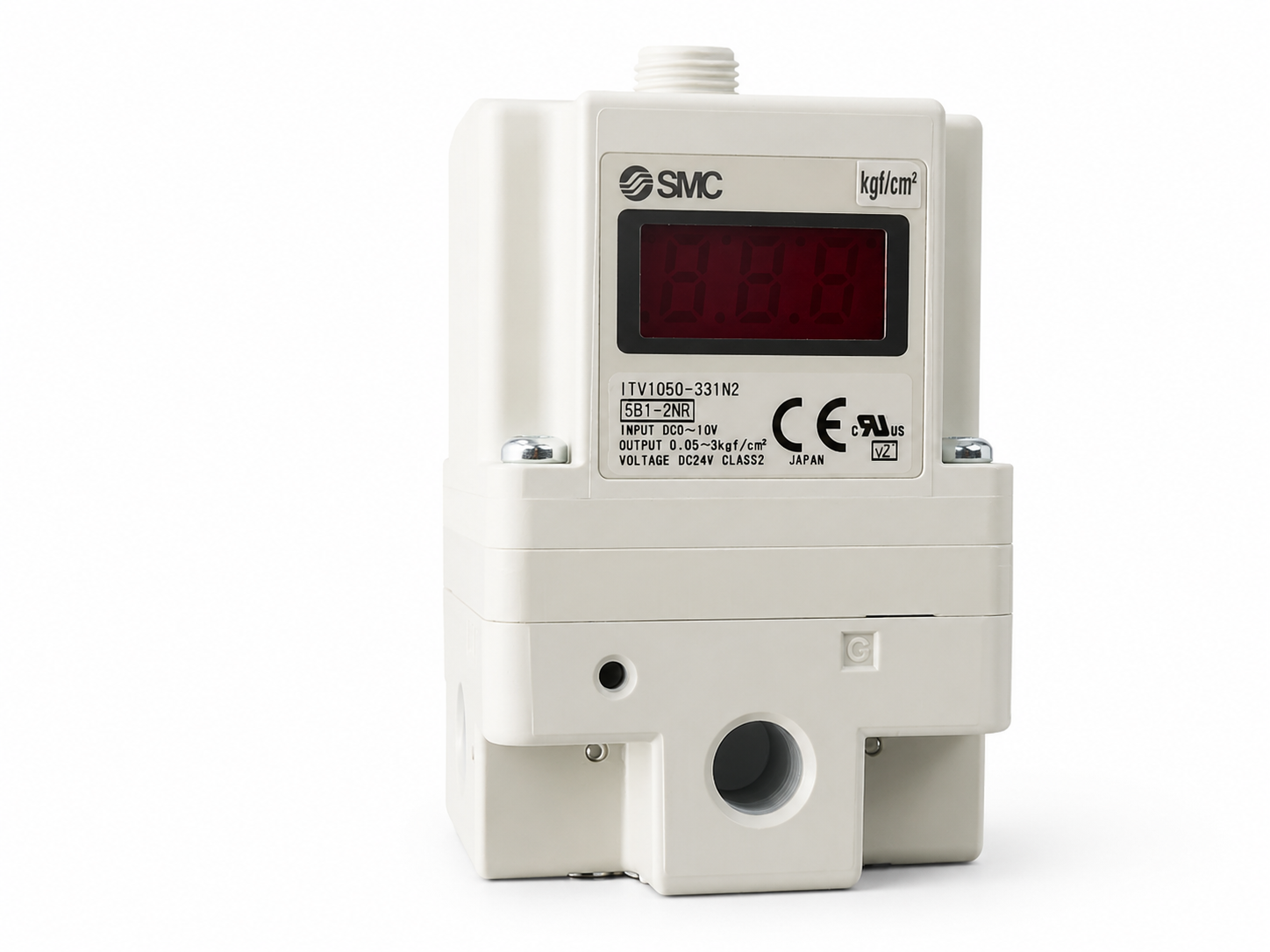

Product Name: SMC E/P Regulator-ITV1050-312L2
Model: ALP/GCM/025
About
The SMC ITV1050-312L2 is an electro-pneumatic (E/P) regulator designed to control air pressure proportionally through an electrical signal. It converts electrical input signals into precise pneumatic output pressure, making it ideal for automation systems requiring accurate pressure control. The regulator features a digital LED display for real-time monitoring and compact lightweight construction.
Applications
- CNC glass processing machines
- Automated pneumatic control systems
- Pressure control in robotic systems
- Air pressure control for coating and spraying machines
- Industrial automation lines
- Packaging and assembly machines
- Semiconductor and electronics manufacturing
- Precision tension and force control systems
- Vacuum and pneumatic testing systems
Key Features
- Stepless proportional pressure control using electrical signals
- High precision pressure regulation
- Bright digital LED pressure display
- Compact and lightweight design
- Fast response and stable output pressure
- IP65 protection for industrial environments
- Supports 0–10 VDC voltage input control
- Analog monitor output available
- High repeatability and low hysteresis
- Easy integration with PLC and automation systems
Technical Description
- Model: ITV1050-312L2
- Type: Electro-Pneumatic Regulator
- Pressure Range: 0.005 to 0.9 MPa
- Input Signal: 0–10 VDC
- Power Supply: 24 VDC
- Port Size: 1/4″
- Display Unit: kgf/cm²
- Linearity: ±1% F.S.
- Hysteresis: ±0.5% F.S.
- Protection Class: IP65
