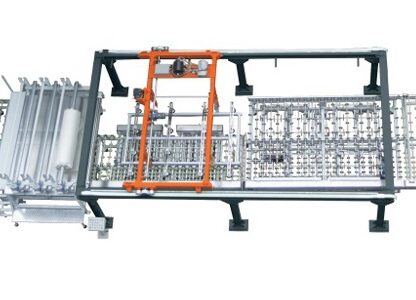

Semi-Automatic PVB Laminated Production Line

Controlled Safety Glass Manufacturing with Balanced Automation

Wings Logic Semi-Automatic PVB Laminated Glass Production Lines are engineered to deliver reliable, high-quality laminated safety glass with a balanced combination of engineering control, operator flexibility, and cost efficiency.

This system is ideal for glass processors who want to enter laminated glass manufacturing or expand capacity while maintaining strict quality discipline—without the full capital intensity of a fully automatic lamination line.
The philosophy behind this system is clear: Automate the critical stages. Control the sensitive stages. Eliminate avoidable risk.

Why Semi-Automatic Lamination Remains a Strategic Choice

While fully automatic lamination is ideal for large-scale production, many successful laminated glass manufacturers operate with semi-automatic lines that offer:

However, poorly designed semi-automatic systems fail due to:

Wings Logic addresses these risks by applying engineering discipline to all quality-critical stages, even in a semi-automatic configuration.

Core Engineering Philosophy

Wings Logic Semi-Automatic PVB Lamination Lines are built on three non-negotiable principles:

This ensures laminated glass quality is repeatable and structurally reliable, not dependent on individual operator skill.

Complete Line Architecture Overview

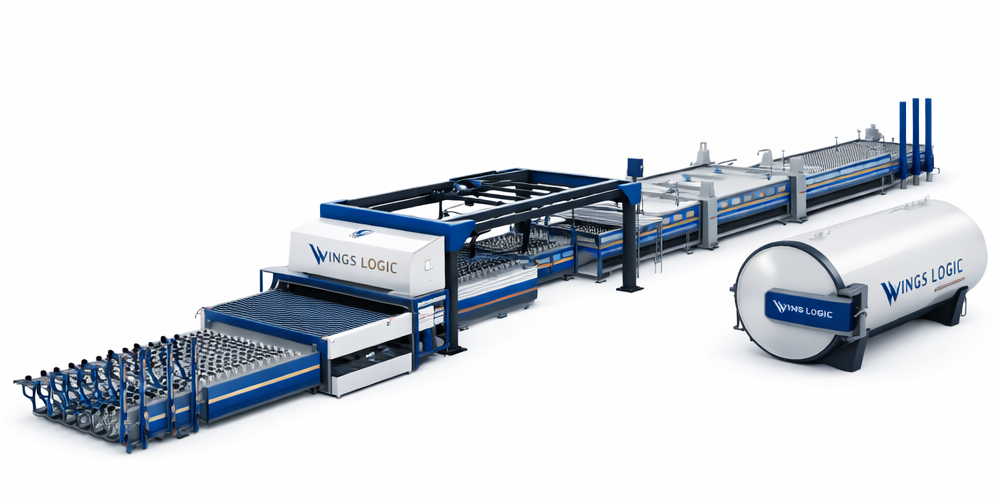

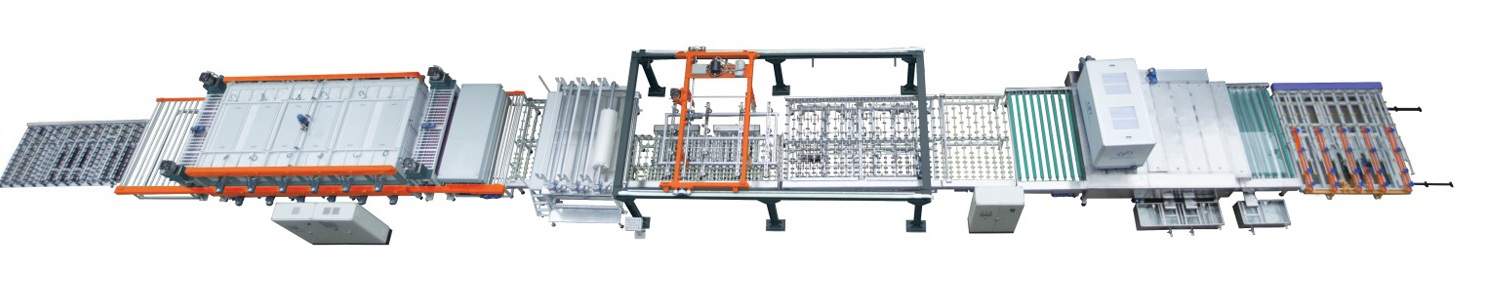

A typical Wings Logic Semi-Automatic PVB Lamination Line includes:

High-efficiency glass washing & drying machine
Controlled PVB film handling and cutting area
Manual or assisted glass & interlayer assembly table
Pre-lamination section (nip roller or vacuum pre-press)
Transfer system to autoclave

Each stage is logically sequenced to maintain process stability and contamination control.

Glass Washing & Surface Preparation

Foundation of Successful Lamination

Glass cleanliness is the most critical factor in lamination quality.

Wings Logic washing systems ensure:

Complete removal of dust, oil, and residues
Safe processing of Low-E and coated glass
Spot-free drying

Even in a semi-automatic line, this stage is fully engineered, because poor washing leads to irreversible defects later.

Clean glass equals strong, durable lamination.

PVB Interlayer Handling & Control

Sensitivity of PVB Film

PVB interlayer is highly sensitive to:

Moisture
Temperature
Contamination

Wings Logic designs the lamination area to support:

Controlled PVB handling
Clean working surfaces
Reduced exposure to ambient humidity

This dramatically improves bonding quality and reduces haze or delamination risks.

Glass & Film Assembly – Controlled, Not Casual

Assisted Assembly Tables

Glass and PVB layers are assembled on precision-guided assembly tables, ensuring:

Accurate layer alignment
Uniform edge overlap
Stable stack geometry

While operator involvement exists, the mechanical design enforces alignment discipline, preventing common assembly errors.

Pre-Lamination Section – Critical Quality Gateway

Nip Roller / Vacuum Pre-Press System

The pre-lamination section removes trapped air and initiates bonding between glass and PVB. Engineering features include:

Uniform pressure distribution
Controlled temperature zones
Smooth, vibration-free transport

This stage is the make-or-break point of lamination. Wings Logic ensures it is engineered for consistency, not left to chance.

Transfer to Autoclave – Stability Matters

After pre-lamination, glass stacks must reach the autoclave without disturbance.

Wings Logic transfer solutions ensure:

Stable handling
No layer shift
No contamination before autoclaving

This protects all upstream quality efforts.

Process Control & Operator Guidance

Simple but Disciplined Workflow

The semi-automatic line uses:

Clear operating sequences
Guided process steps
Defined quality checkpoints

This ensures that even with multiple operators or shifts, process discipline is maintained.

Laminated Glass Quality & Performance

Wings Logic Semi-Automatic Lamination Lines deliver:

Reliable bonding strength
Good optical clarity
Reduced bubble and haze formation
Consistent lamination performance

The output is suitable for:

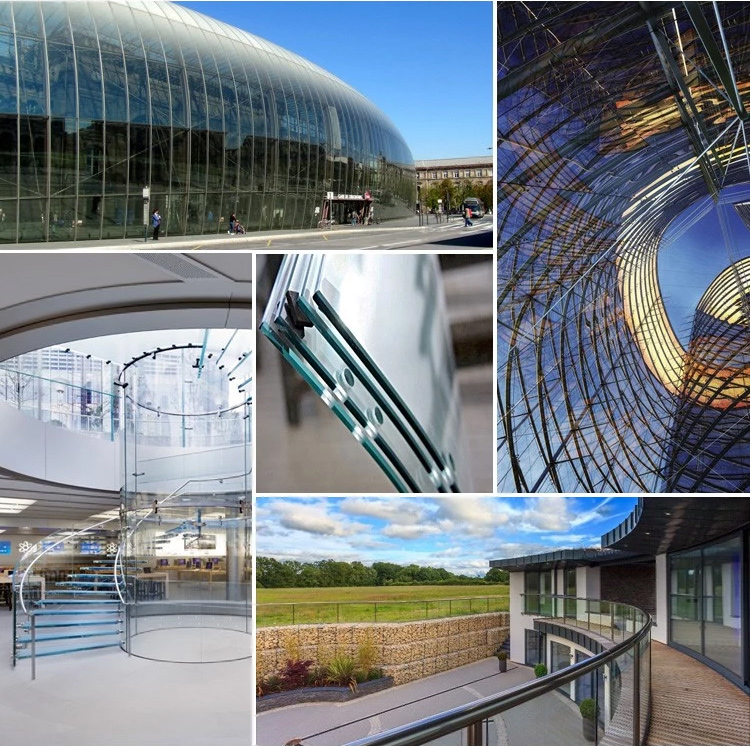

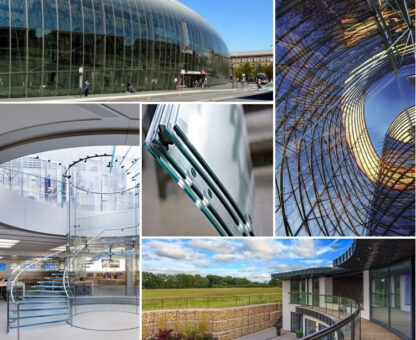

Architectural laminated glass
Safety glazing
Interior and façade applications
Regional and export markets (depending on spec)

Performance Under Daily Factory Conditions

The system is designed for:

Robust mechanical design and industrial-grade components ensure stable daily performance, not just ideal-condition output.

Typical Applications

Semi-Automatic PVB Lamination Lines are ideal for:

They are especially valuable where:

Business & ROI Perspective

Compared to fully automatic systems, semi-automatic lamination offers:

For many customers, this system becomes the foundation of their lamination business, later upgraded as demand grows.

Upgrade Path to Full Automation

A key strength of Wings Logic Semi-Automatic Lamination Lines is future readiness. The system can be upgraded with:

This protects the customer’s investment and supports phased factory growth.

Integration with Complete Wings Logic Factory Solutions

Semi-Automatic Lamination Lines integrate smoothly with:

This ensures process continuity and layout efficiency, even without full automation.

Built for Practical, Sustainable Lamination Manufacturing

Many of today’s large laminated glass producers began with well-engineered semi-automatic lines. Wings Logic designs these systems to support:

This is not a compromise solution. It is a strategic and intelligent starting point.
