Fully Automatic PVB Laminated Production Line
Engineering Safety, Structural Integrity & Optical Perfection
Wings Logic Fully Automatic PVB Laminated Glass Production Lines are engineered to manufacture high-performance laminated safety glass that meets the strict demands of architectural, façade, structural, automotive, and security glazing applications.
This system integrates glass preparation, PVB interlayer assembly, pre-lamination, vacuum control, and process synchronization into a fully automated and highly controlled production workflow, ensuring optical clarity, bonding strength, and long-term durability.
This is not just lamination equipment.
It is a structural safety glass manufacturing system.
Why Fully Automatic Lamination Is Mission-Critical
Laminated glass is a life-safety product. Any inconsistency in lamination can result in
- Delamination over time
- Optical distortion
- Air bubbles and haze
- Structural failure under load
- Project rejection and liability risk
Manual or poorly automated lamination lines fail because lamination is not forgiving.
Wings Logic Fully Automatic PVB Lamination Lines are engineered to eliminate variability, ensuring repeatable, certifiable laminated glass quality.
Core Engineering Philosophy
Wings Logic lamination systems are built on three non-negotiable principles:
- Absolute Process Control
- Zero Contamination at Every Stage
- Repeatability Independent of Operator Skill
Lamination is treated as a controlled chemical-mechanical process, not an assembly task.

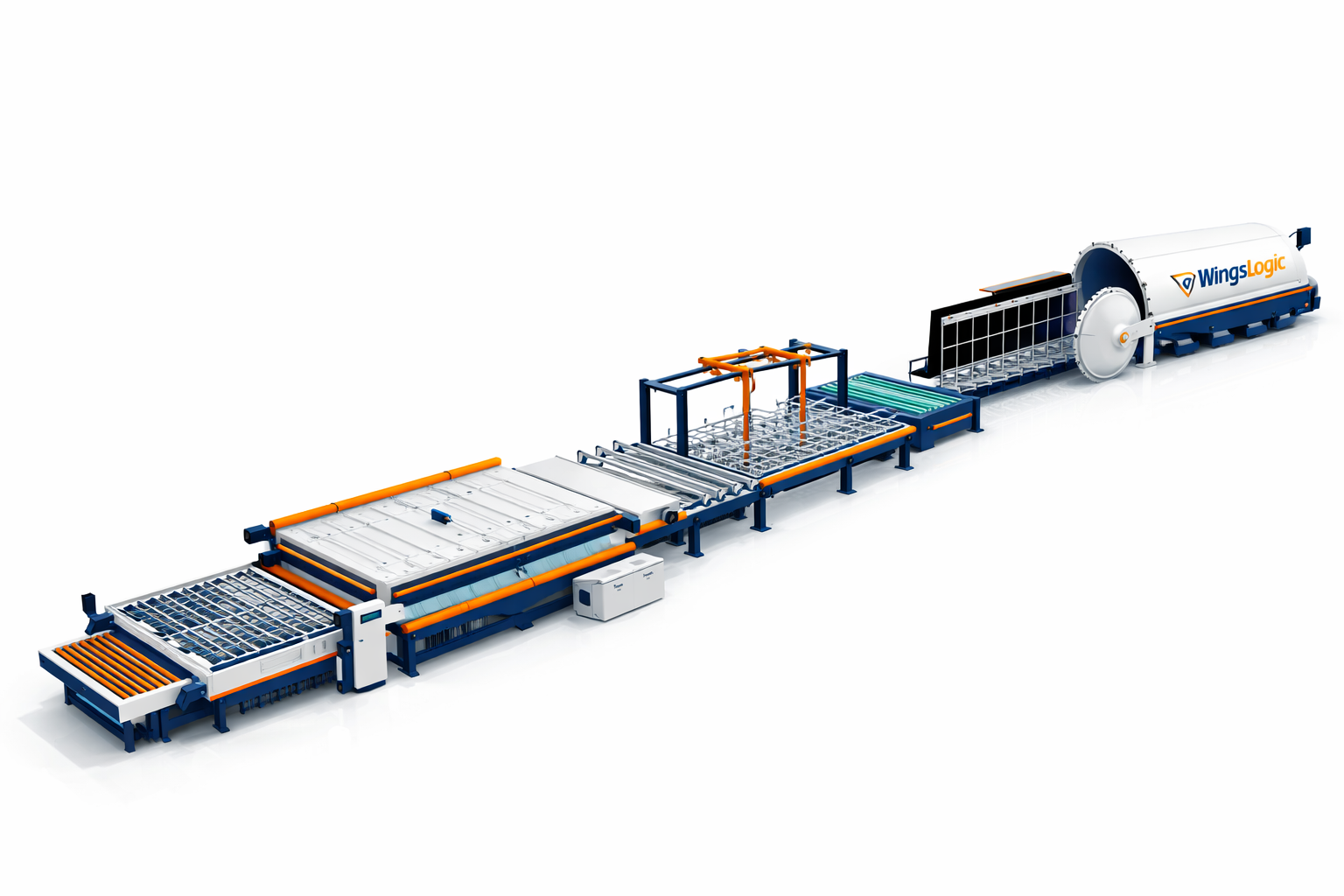

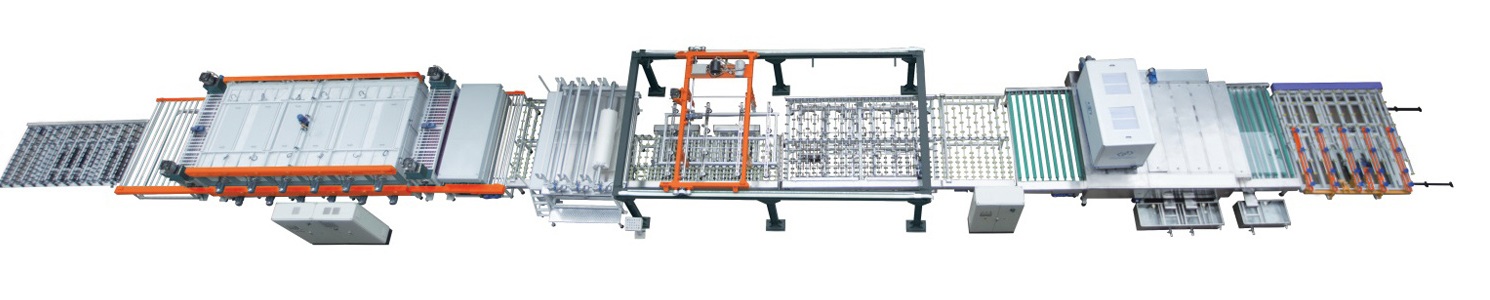

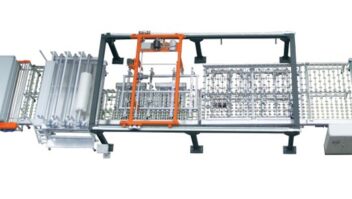

Complete Line Architecture Overview
A fully automatic PVB lamination line typically consists of:
- Glass washing & drying section
- Cleanroom-controlled PVB assembly zone
- Automatic glass & interlayer alignment system
- Pre-lamination (nip roller / vacuum press) section
- Transfer system to autoclave
Each stage is synchronized to maintain temperature, humidity, pressure, and cleanliness discipline.
Glass Preparation & Washing – Foundation of Lamination
Precision Cleaning
Glass surfaces must be absolutely clean before lamination. Even microscopic contamination can cause defects.
Wings Logic washing systems ensure:
- Zero dust and oil residues
- Safe processing of Low-E and coated glass
- Spot-free drying
Clean glass is the single most critical requirement for successful lamination.
PVB Interlayer Handling & Control
Controlled Interlayer Environment
PVB film is highly sensitive to:
- Humidity
- Temperature
- Dust contamination
Wings Logic systems include controlled PVB handling zones to maintain interlayer integrity.
Automatic Film Alignment
Servo-controlled alignment ensures:
- Precise film positioning
- Uniform edge overlap
- Consistent interlayer thickness
Manual film handling errors are completely eliminated.
Automatic Glass & Film Assembly
Precision Layer Stacking
Glass and PVB layers are assembled using automatic positioning and vacuum holding systems, ensuring:
- Perfect layer alignment
- No trapped air
- Uniform stack geometry
This accuracy is essential for optical clarity and structural performance.
This accuracy is essential for optical clarity and structural performance.
Nip Roller / Vacuum Pre-Press
The pre-lamination section removes trapped air and initiates bonding between layers. Engineering features include:- Controlled pressure application
- Uniform temperature distribution
- Smooth glass transport
- Bubble-free lamination
- Optical quality
- Autoclave success rate
Process Synchronization & Transfer Automation
Intelligent Transfer Systems
Laminated stacks are transferred automatically to the autoclave loading area using:- Vacuum lifters
- Servo-controlled conveyors
- Shock-free handling
Automation Control & Process Logic
Centralized Lamination Control System
The entire line is managed by an intelligent automation controller that:- Synchronizes all stations
- Controls environmental parameters
- Maintains process consistency
- Logs production data

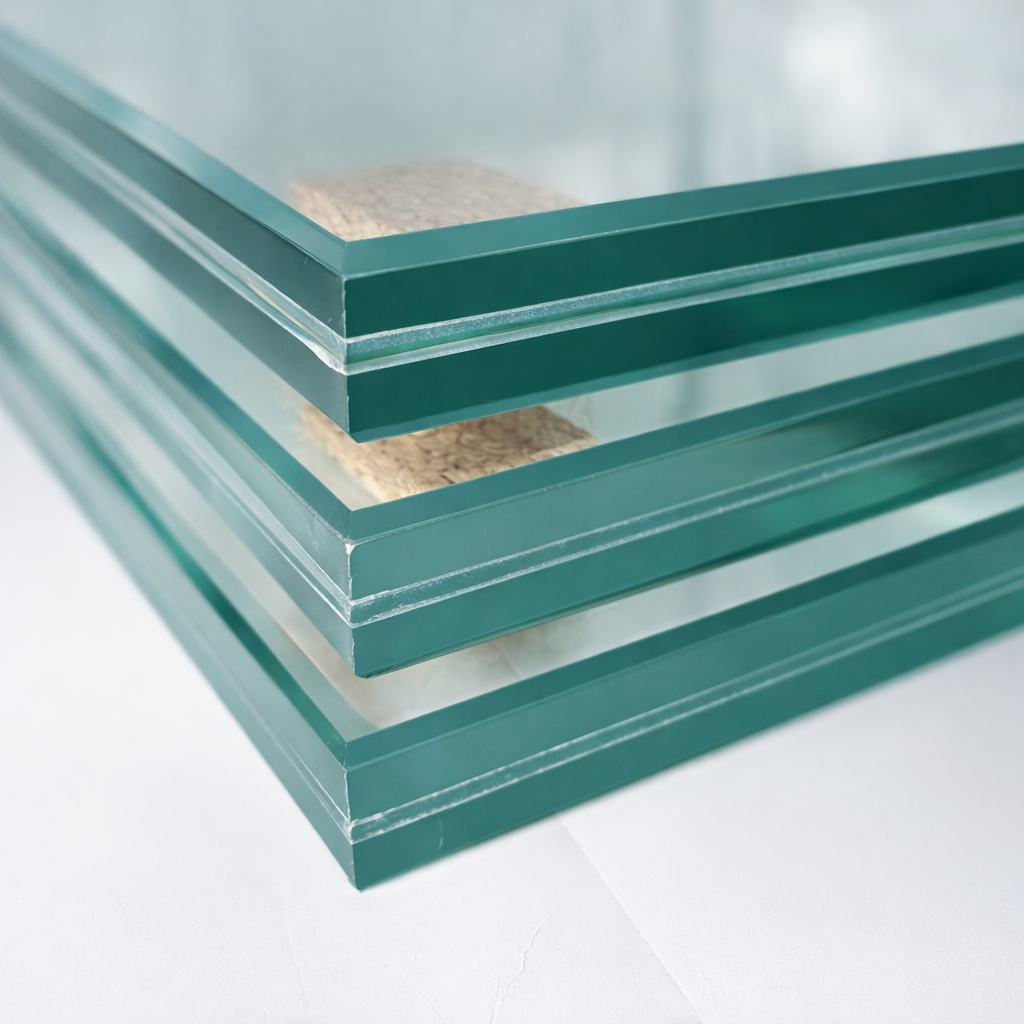

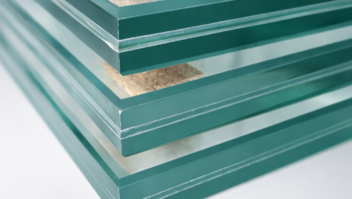

Optical Quality & Structural Performance
Fully automatic lamination ensures:
- High optical clarity
- No haze or distortion
- Uniform bonding strength
- Long-term delamination resistance
This is essential for:
- Structural façades
- Overhead glazing
- Bullet-resistant and safety glass
Performance Under Industrial Load
Wings Logic Fully Automatic Lamination Lines are designed for:
- Multi-shift operation
- High daily output
- Large laminated panel sizes
Industrial-grade components ensure stable, repeatable performance year after year.

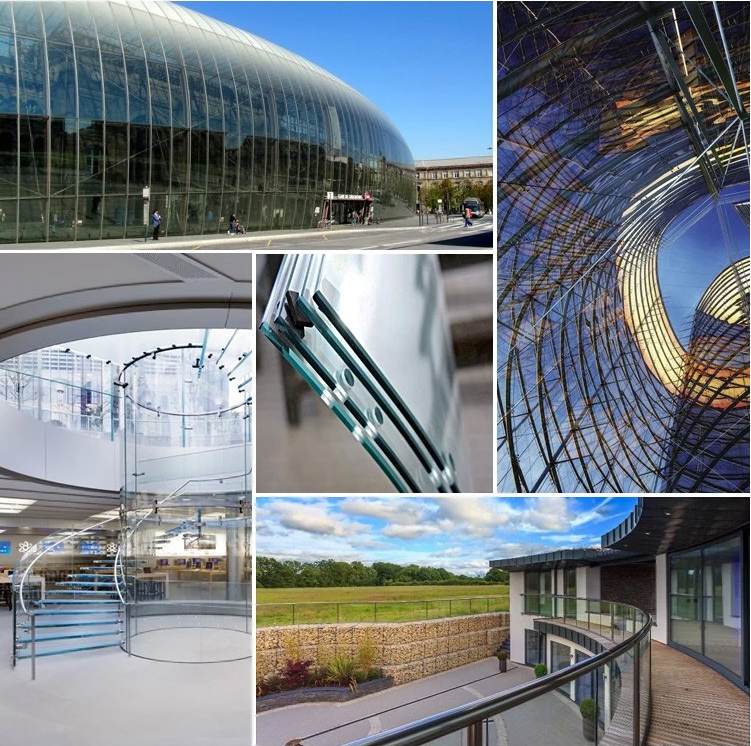

Typical Applications
These systems are essential for:
- Architectural laminated glass
- Structural façade glazing
- Skylights and overhead glass
- Security and safety glass
- High-value export projects
Business & ROI Perspective
Fully automatic lamination lines deliver ROI through:
- Reduced rejection rates
- Higher laminated glass selling value
- Access to premium projects
- Reduced liability and warranty risk
For serious laminated glass manufacturers, this system is a strategic investment, not a cost.
Integration with Complete Wings Logic Factory Solutions
The lamination line integrates seamlessly with:
- CNC cutting systems
- Washing and tempering lines
- Automatic handling systems
- Autoclave machines
This enables complete laminated glass factories under one engineering responsibility.
Built for Certification-Driven Markets
As global standards demand:
- Safety compliance
- Structural testing
- Performance certification
Fully automatic lamination becomes mandatory infrastructure.
Wings Logic designs systems ready for global regulations and future standards.
