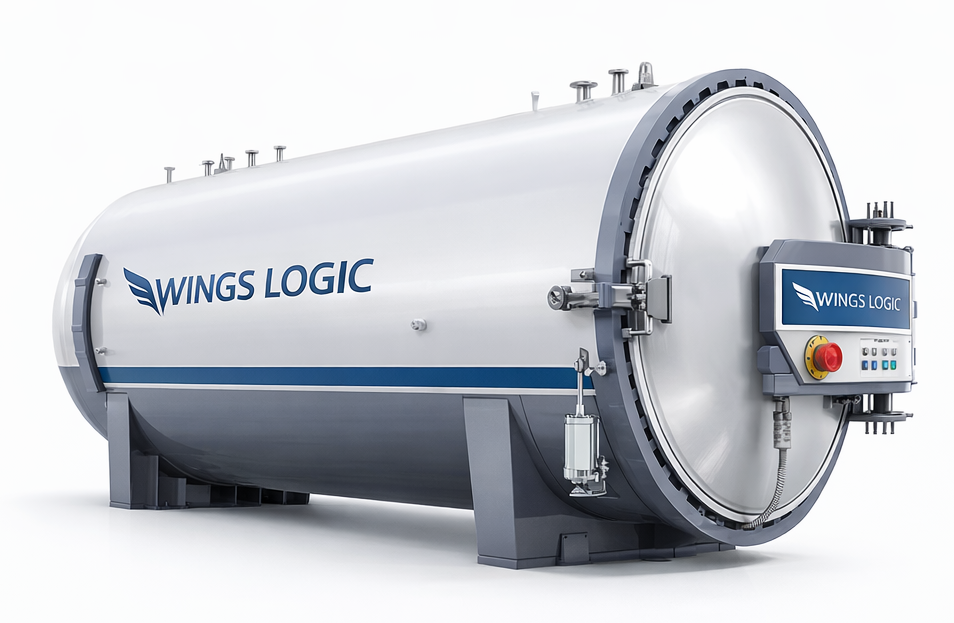

Autoclave Machine
The Core Pressure System Behind Structural & Safety Laminated Glass
Wings Logic Autoclave Machines are engineered to deliver precise temperature, pressure, and time control required for producing structurally sound, optically clear, and long-lasting laminated glass. The autoclave is not an accessory in lamination—it is the final authority on laminated glass quality, safety, and certification readiness.
Every laminated glass panel, regardless of how perfectly it is assembled upstream, is ultimately judged by autoclave performance.
This is where Wings Logic applies heavy engineering discipline, not compromise.
Why the Autoclave Is the Heart of Lamination
The autoclave performs the final chemical–mechanical bonding of glass and interlayer under:
- High pressure
- Controlled temperature
- Precisely timed cycles
- Easier operator training
If any of these parameters fluctuate, the result can be:
- Delamination
- Optical haze
- Bubbles and edge defects
- Structural weakness
- Project rejection and liability exposure
Wings Logic Autoclave Machines are engineered to eliminate variability, ensuring laminated glass meets architectural, safety, and structural performance standards consistently.
Core Engineering Philosophy
Wings Logic autoclaves are built on three uncompromising principles:
- Uniform Pressure Distribution Across the Entire Load
- Stable Temperature Control Without Local Overheating
- Repeatable, Programmable Process Cycles
The autoclave is treated as a pressure vessel + thermal system + digital control platform, not just a heated chamber.
Autoclave Structure & Pressure Vessel Design

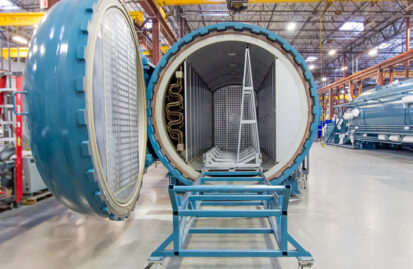

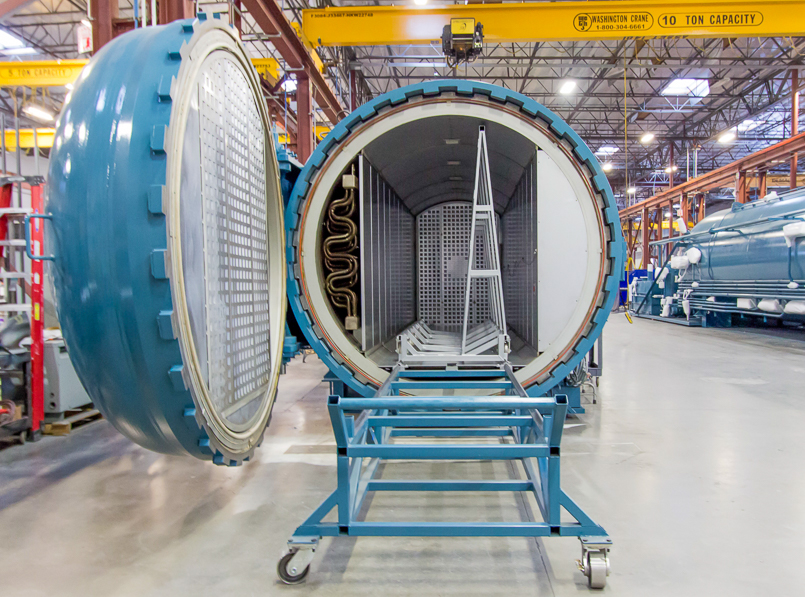

Heavy-Duty Pressure Vessel Construction
The autoclave vessel is manufactured using high-grade, thick steel plates, designed to withstand continuous high-pressure operation with a wide safety margin.
Engineering highlights include:
- Cylindrical pressure vessel geometry for uniform stress distribution
- Precision-welded construction
- Stress-relieved fabrication for long service life
High-Integrity Door & Locking Mechanism
The autoclave door system is engineered with:- Multi-point mechanical locking
- Pressure-assisted sealing
- Redundant safety interlocks
Pressure System Engineering
Uniform Pressure Application
The autoclave applies pressure evenly across all laminated glass panels inside the chamber, ensuring:- Complete interlayer bonding
- Elimination of trapped air
- Consistent optical clarity
Industrial-Grade Pressure Control
Advanced pressure control valves and sensors maintain:- Stable pressure levels
- Controlled pressure ramp-up and ramp-down
- Safe emergency pressure release
Temperature Control & Heat Distribution
Precision Heating System
The heating system is designed to deliver:- Uniform temperature throughout the chamber
- Controlled heating rates
- Stable soak temperature
- Optical distortion
- Uneven interlayer flow
- Thermal stress in glass
Advanced Air Circulation
High-capacity circulation fans ensure:- Even heat distribution
- Elimination of hot and cold zones
- Consistent lamination results across the load
Process Cycle Control & Automation
Programmable Control System
Wings Logic autoclaves feature advanced PLC-based control systems that allow:- Custom cycle programming
- Multi-stage heating and pressure profiles
- Storage of recipes for different laminated glass types
Process Monitoring & Data Logging
Critical parameters such as:- Temperature
- Pressure
- Time
- Quality traceability
- Process verification
- Audit readiness
Compatibility with Different Interlayers
Wings Logic Autoclaves are suitable for processing:
- PVB laminated glass
- Multi-layer laminated configurations
- Specialty safety interlayers (with configuration support)
The system can be tuned to match interlayer-specific processing requirements, ensuring optimal bonding performance.
Load Handling & Capacity Optimization
Trolley & Rack Systems
Autoclaves are equipped with:- Heavy-duty loading trolleys
- Stable rack systems for vertical or horizontal glass placement
- Safe loading and unloading
- Maximum chamber utilization
- Stable panel positioning during processing
Large Panel & High-Load Capability
Designed to handle:- Jumbo laminated glass panels
- High batch weights
- Continuous production cycles
Safety Systems & Compliance
Multi-Layer Safety Engineering
Wings Logic autoclaves include:- Overpressure protection systems
- Emergency pressure release valves
- Temperature limit safeguards
- Door interlock logic
Compliance & Certification Readiness
The autoclave design supports compliance with:- Industrial pressure vessel standards
- Safety regulations
- Laminated glass production requirements
Performance Under Industrial Conditions
Wings Logic Autoclaves are designed for:
- Continuous multi-shift operation
- Long heating cycles
- Heavy daily workloads
Industrial-grade components ensure stable performance and minimal downtime, even under demanding production schedules.

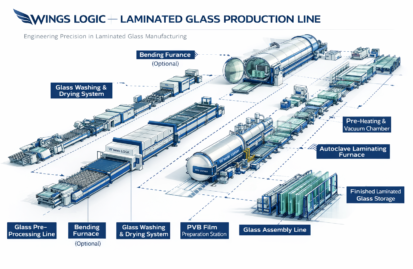

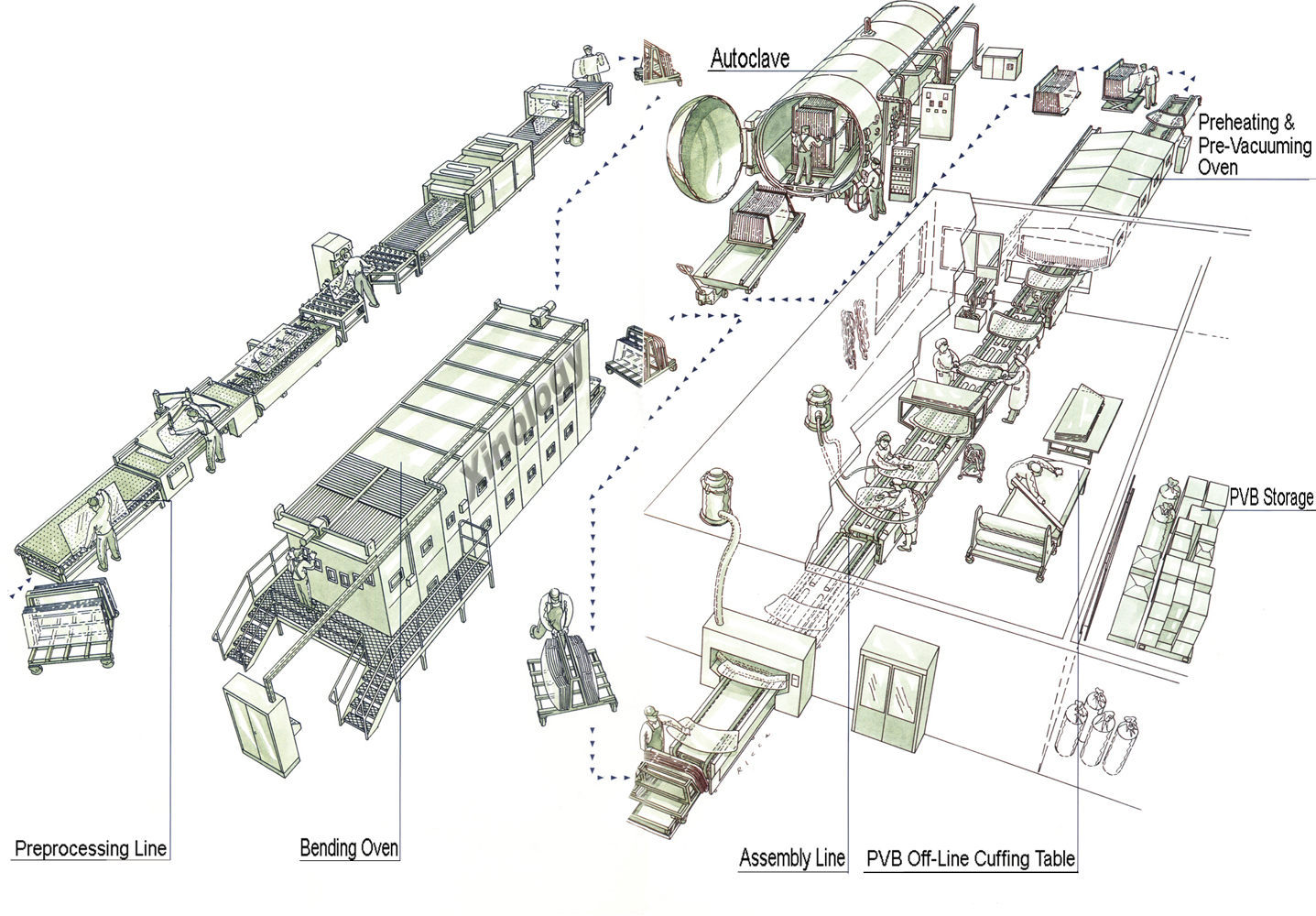

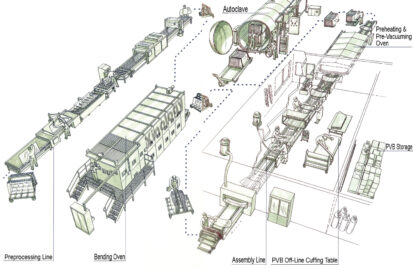

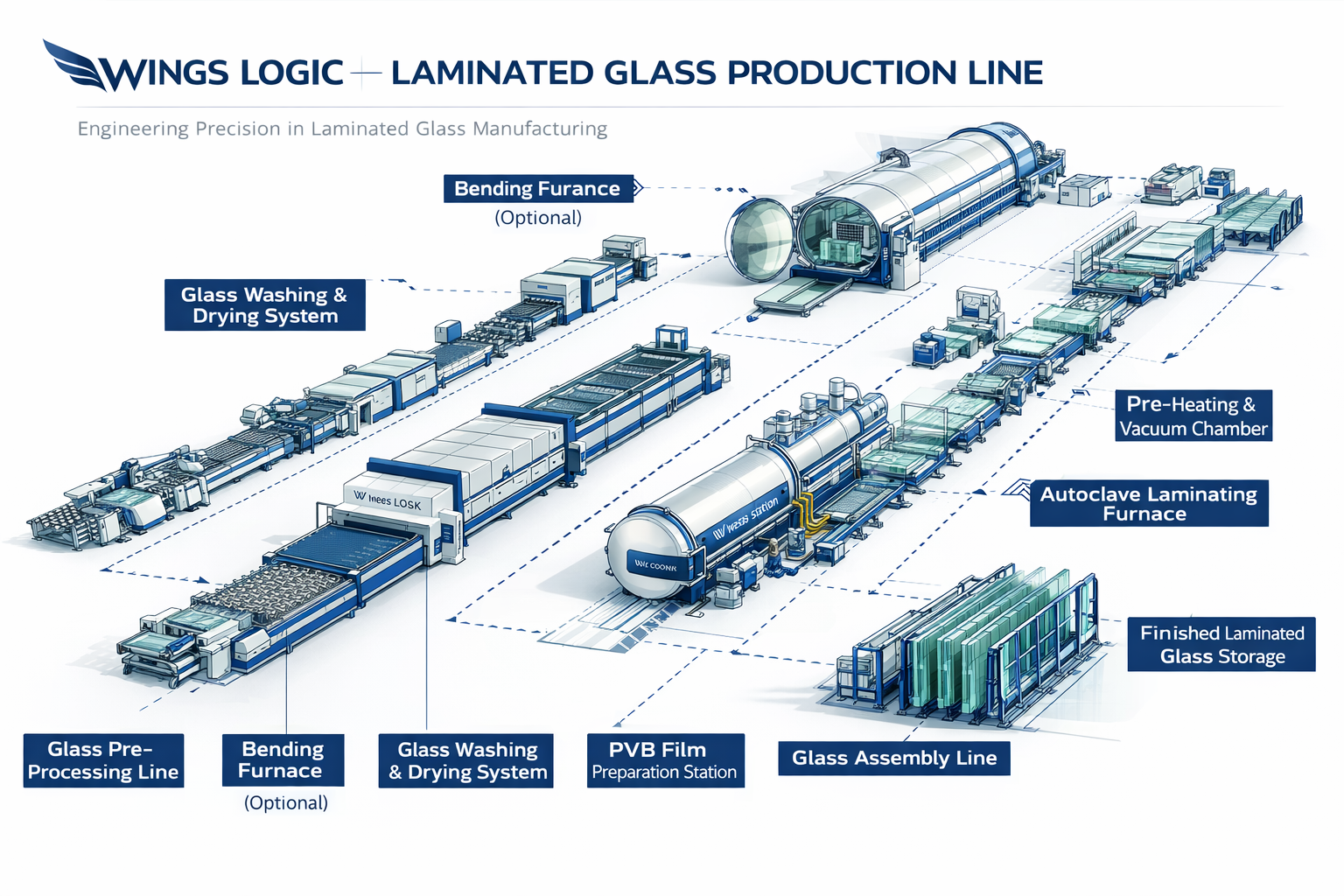

Integration with Lamination Lines
The autoclave integrates seamlessly with:
- Fully automatic PVB lamination lines
- Semi-automatic lamination lines
- Automated handling and transfer systems
This ensures smooth production flow and eliminates handling-related risks.

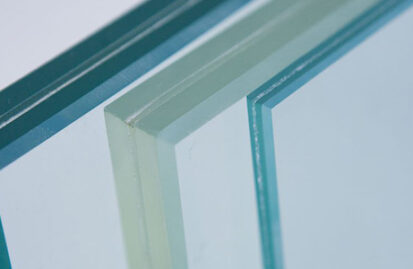

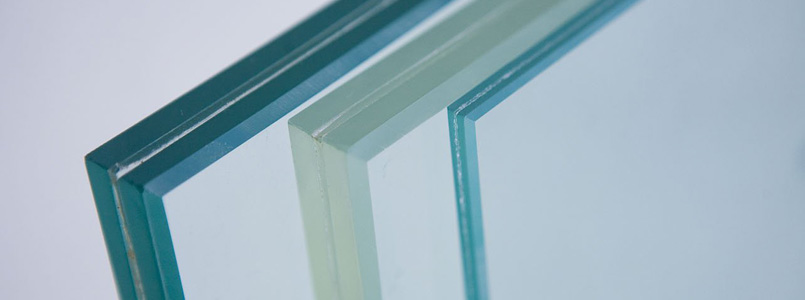

Typical Applications
Wings Logic Autoclave Machines are essential for producing:
- Architectural laminated glass
- Structural façade panels
- Skylights and overhead glazing
- Safety and security glass
- High-value laminated glass for export
Business & ROI Perspective
While the autoclave is a capital-intensive system, its value is realized through:
- Reliable laminated glass quality
- Reduced rejection and rework
- Access to premium, safety-critical projects
- Lower long-term liability risk
In laminated glass manufacturing, the autoclave is not optional—it is decisive.
Built for Certification, Safety & Long-Term Production
As global construction standards demand:
- Higher safety margins
- Structural validation
- Long-term performance
Autoclave quality directly determines factory credibility.
Wings Logic designs autoclaves that support certification-driven, future-ready laminated glass manufacturing.
