Automatic Loader And Transfer

Intelligent Glass Handling for Zero-Damage, Zero-Delay Production

Wings Logic Automatic Loader & Transfer Systems are engineered to deliver fully automated, synchronized, and damage-free glass handling between machines in modern glass factories. These systems replace manual lifting, forklifts, and crane-based handling with servo-controlled, vacuum-based, software-synchronized automation.

In high-capacity factories, productivity is not limited by machine speed — it is limited by how efficiently glass moves between machines.

This is where Wings Logic Automatic Loader & Transfer Systems become mission-critical.

Why Automated Glass Handling Is Essential in Modern Factories

Manual glass handling introduces serious challenges:

As glass sizes increase and automation levels rise, manual transfer becomes the weakest and most dangerous link in the factory. Wings Logic eliminates this risk by engineering intelligent handling systems that move glass smoothly, safely, and predictably.

Core Engineering Philosophy

The system is designed around three core principles:

Every motion, speed, and position is calculated to protect the glass and maintain production rhythm.

System Architecture Overview

Wings Logic Automatic Loader & Transfer Systems consist of:

These elements work together to form a continuous glass flow network across the factory.

Vacuum Lifting Technology – The Heart of Safe Handling

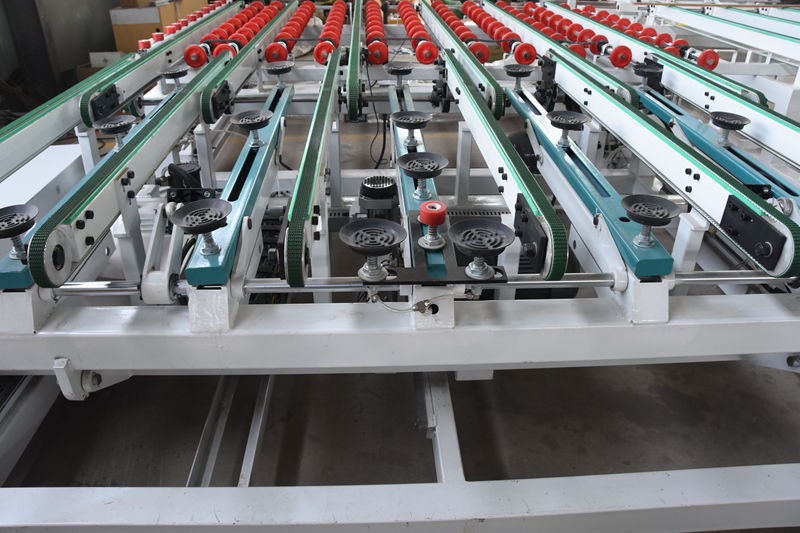

Multi-Zone Vacuum Suction Frames

Glass is lifted and handled using industrial vacuum suction frames designed specifically for flat glass.

Key engineering features:

Multi-zone vacuum circuits for stability
Individual suction cup monitoring
Automatic vacuum pressure control
Anti-drop safety logic

This ensures secure glass holding, even for large-format and heavy sheets.

Glass Surface Protection

Suction cups are made from glass-safe, non-marking materials, preventing:

Surface scratches
Coating damage
Residue marks

This is especially critical for Low-E and coated glass.

Servo-Controlled Motion & Positioning

Precision Transfer Bridges

Glass movement is executed using servo-driven transfer bridges that provide:

Smooth acceleration and deceleration
Accurate positioning
Shock-free movement

This eliminates vibration and sudden motion, which are primary causes of glass stress and breakage

Speed Synchronization Logic

The system dynamically matches the speed of:

Upstream machine output
Downstream machine intake

This ensures continuous flow without waiting or congestion.

Loader Systems – Feeding Machines Automatically

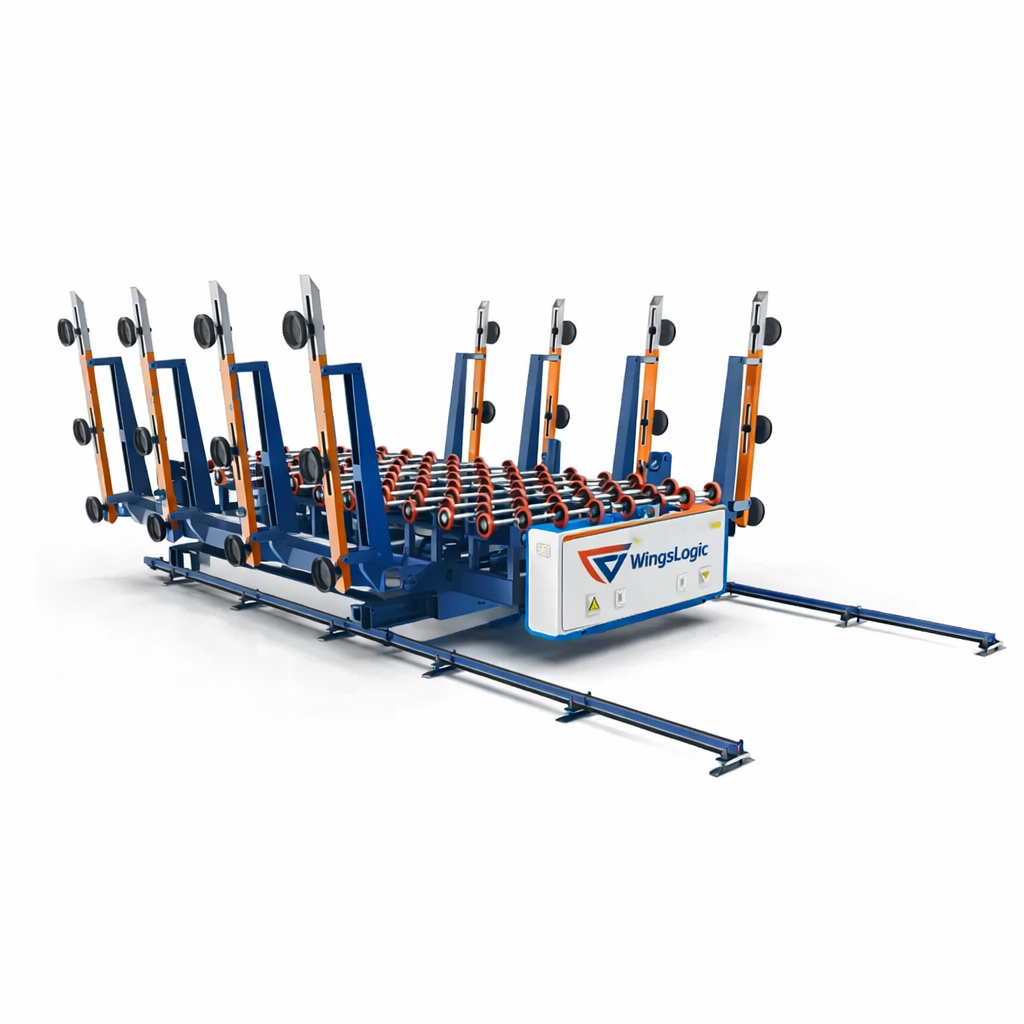

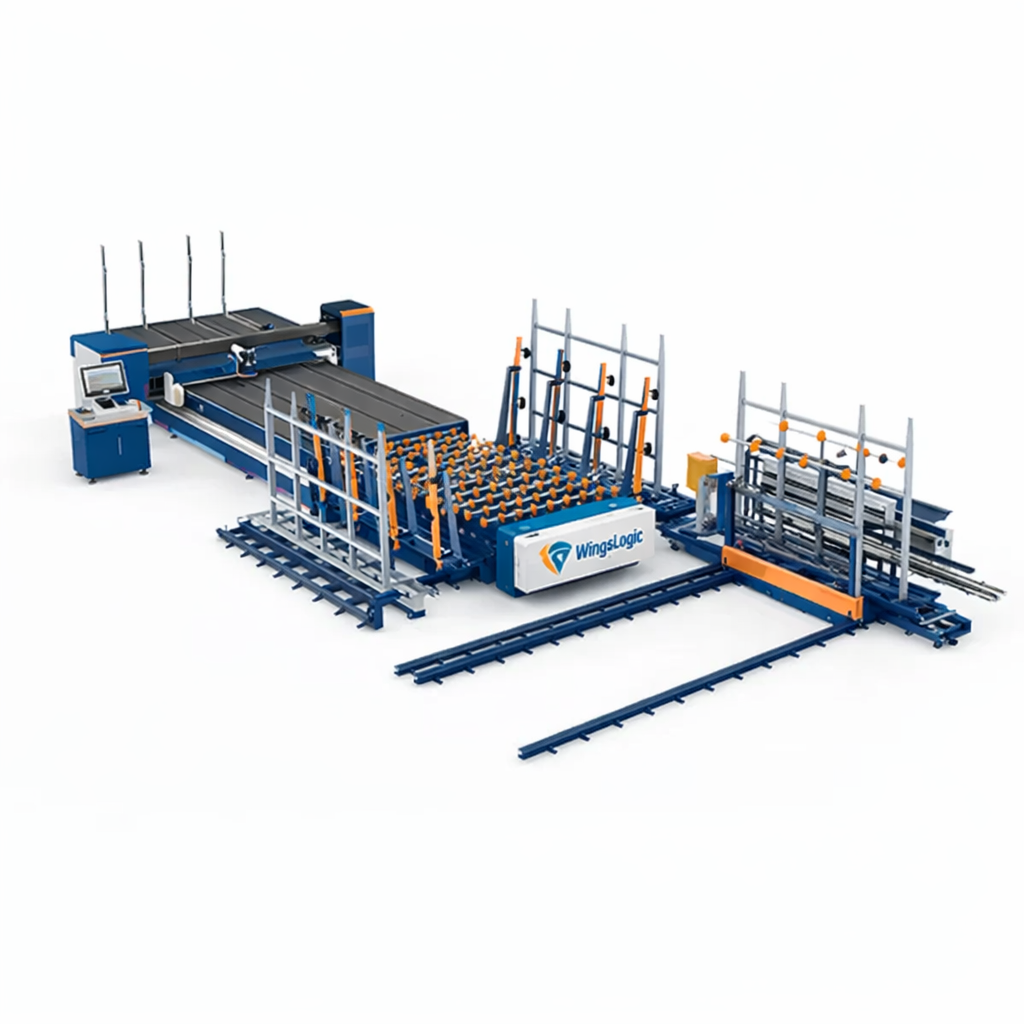

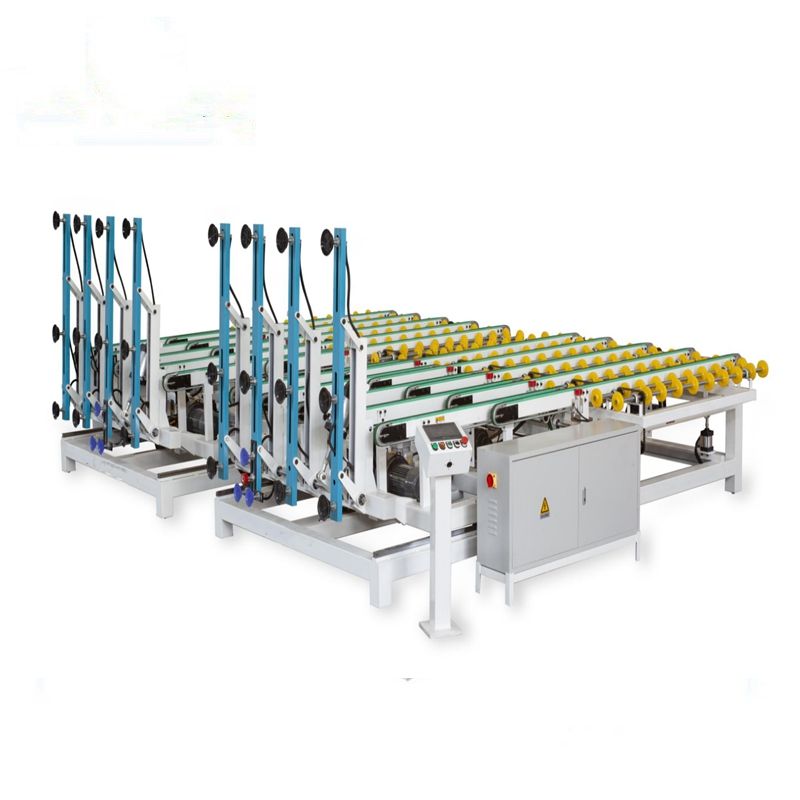

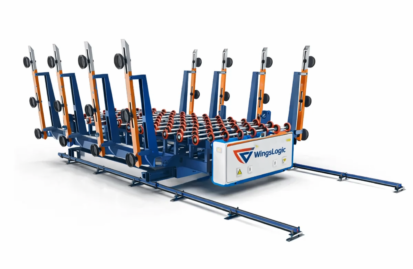

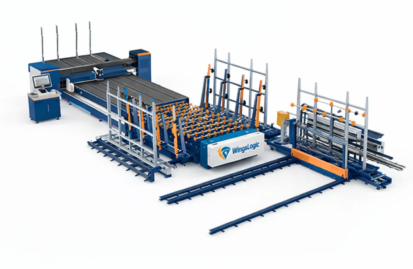

Automatic Glass Loaders

Wings Logic loaders automatically pick glass from:

Online warehouses
Sorting buffers
Storage racks

And feed it into:

CNC cutting machines
Double edging lines
Washing machines
Processing centers

Loading is executed with millimeter-level accuracy, ensuring correct alignment every time.

Transfer Systems – Connecting the Factory

Machine-to-Machine Transfer

Transfer systems move glass automatically between:

Cutting → Edging
Edging → Washing
Washing → Tempering
Processing → Lamination / DGU

This removes human dependency and ensures process continuity.

Buffer & Accumulation Zones

Integrated buffer tables allow:

Temporary glass accumulation
Production rhythm balancing
Prevention of machine idle time

Buffers are critical in high-speed factories where machines operate at different cycle times.

Intelligent Control & Synchronization Software

Centralized Handling Control

All loader and transfer operations are managed by a centralized automation controller that:

Coordinates motion sequences
Monitors vacuum safety
Adjusts speed dynamically
Responds to machine status signals

This turns handling into a controlled production process, not a mechanical task.

Integration with Production Planning

The system can communicate with:

CNC cutting software
Sorting systems
Factory MES / ERP

This enables logic-based handling, where glass movement follows production priorities automatically.

Safety Engineering – Designed for Zero Compromise

Glass handling is one of the most dangerous factory operations. Wings Logic systems include multi-layer safety engineering, such as:

Vacuum loss detection and emergency hold
Safe movement zones
Light curtains and safety interlocks
Emergency stop systems

Every scenario is designed with fail-safe logic, ensuring operator protection at all times.

Performance Under Industrial Load

Wings Logic Automatic Loader & Transfer Systems are designed for:

Industrial-grade motors, controllers, and mechanical components ensure stable performance over long service life.

Typical Factory Applications

These systems are essential in:

They are especially critical where speed, safety, and consistency are mandatory.

Long-Term ROI & Strategic Value

Although handling automation is often underestimated, its ROI is realized through:

For modern factories, handling automation is not optional — it is infrastructure.

Operational & Business Advantages

Reduced Glass Breakage
Automated handling dramatically lowers damage caused by human error.
Improved Factory Safety
Manual lifting and forklift movement are eliminated.
Higher Production Efficiency
Machines operate continuously without waiting for glass.
Lower Labor Dependency
Handling manpower is reduced or eliminated.

They are ideal for both new installations and factory expansions.

Integration with Complete Wings Logic Automation Ecosystem

Automatic Loader & Transfer Systems integrate seamlessly with:

This enables Wings Logic to deliver fully synchronized, end-to-end factory automation.

Built for Safe, Smart & Scalable Glass Factories

As factories grow larger and more automated, handling systems determine:

Wings Logic designs handling automation that supports long-term factory growth.
